China IoT UPVC Electric Ball Valve with Smart Modbus 485 Communication for Remote Flow Control and Automated Water Treatment Systems wholesale

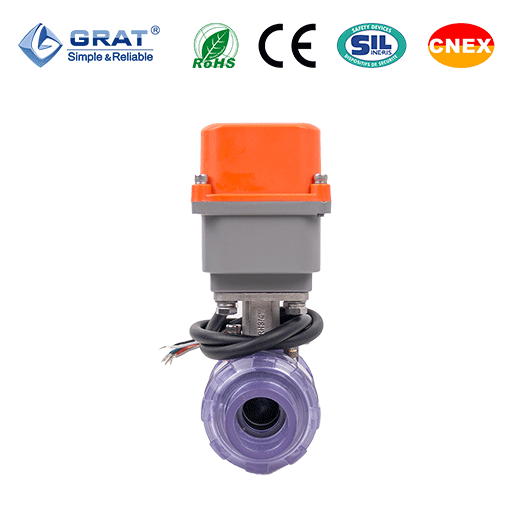

IoT UPVC Electric Ball Valve with Smart Modbus 485 Communication for Remote Flow Control and Automated Water Treatment Systems

Name: IoT UPVC Electric Ball Valve with Smart Modbus 485 Communication for Remote Flow Control and Automated Water Treatment Systems
Brand: GRAT
Price: 1 USD

Ask Latest Price

Video Channel

Brand Name :GRAT

Model Number :EK-20

Certification :IP66,CCC, ISO, CE,CNAS,SIL

Place of Origin :Wuhan, Hubei, China

MOQ :1 pc

Price :USD $150.00/ Piece

Payment Terms :LC, T/T, D/P, PayPal, Western Union

Supply Ability :1000PCS/Week

Delivery Time :3 working days

Packaging Details :Carton/Wooden Box

Type :On/Off

Power Supply :AC220V/DC24V

Ambient Temp :-30ºC~60ºC

Application :Food, Environmental Protection, Paper-making, Chemical Engineering, and Power

Action Time :15S - 25S

Communication Protocol :Modbus

Torque :20NM

Size :DN20 ( up to DN25 )

Speed Regulation Mode :PWM

Position Display :OLED

Backlash :0.5%

Dead :0.5%

Feedback :0.5%

Contact Now

Add to Cart

View Product Description

Transparent/Clear UPVC Electric Valve

Product Description

The Transparent/Clear UPVC Electric Valve stands out as a versatile and reliable component in fluid control systems, leveraging the unique properties of unplasticized polyvinyl chloride (UPVC) combined with enhanced transparency. Its clear structure allows for real-time visual monitoring of fluid flow, making it an ideal choice in applications where process visibility is critical—such as in water treatment plants, pharmaceutical production lines, and food and beverage processing. Operators can easily observe fluid clarity, detect blockages, or verify flow rates without disassembling the system, significantly reducing maintenance time and operational disruptions.

Features

Low power consumption and high efficiency: It only requires 10W of power, saving energy costs and being able to work efficiently and stably at the same time.
Smooth speed regulation: Adopting PWM stepless speed regulation ensures a stable operation process of the actuator and provides more stable control.
High-performance motor: The built-in brushless motor with overload protection is stable, reliable and has a long service life.
Real-time parameter display: The OLED real-time displays status and parameter information in Chinese or English,providing more real-time feedback and fault alarm information during the use process.
Precise control: The adjustable range is wide, from 30% to 100%, and it has a control accuracy of 0.5%, precisely meeting the control requirements of different occasions.
Multiple feedback methods: It supports feedback methods of 4-20mA/0-10V/1-5V, ensuring the accuracy of control.

Basic Parameters

Nominal Bore (DN): DN15～DN40

Operating Voltage: AC220V, DC24V

Medium Temperature: -15℃～60℃

Nominal Pressure: PN1.0～1.6MPa

Flow Characteristic: Quick opening

Physical Specifications

Connection Type: Union, Flange

Valve Body Materials: UPVC, CPCV,PVC

Valve Core Materials: UPVC, CPCV,PVC

Ball Valve Seal: PTFE, PPL, etc.

Packing Material: Graphite, PTFE

Actuator Seal: Viton (FKM)

Actuator Material: Cast aluminum alloy

Suitable Media

Water
Acids
Alkalis
Food-grade fluids
Industrial waste liquids
Pharmaceutical process fluids

Standards Compliance

Design & Manufacturing:

GB12237-2007

API 6D

Product Inspection & Testing: API 598
